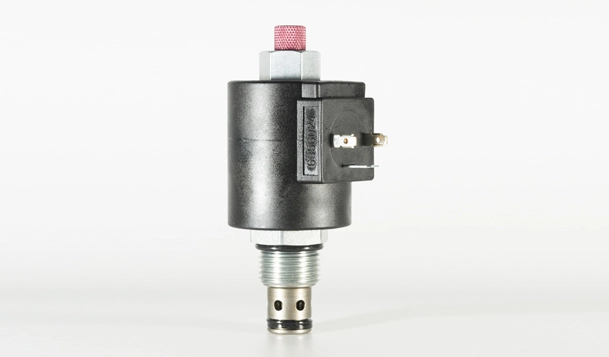

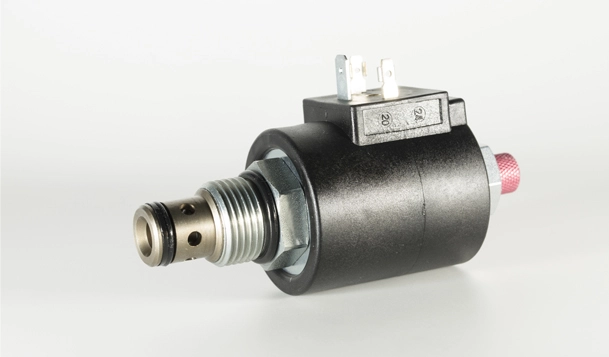

ISV10-20 Poppet 2-Way N.C. Solenoid Valve

A solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve, designed to function as a load holding or blocking valve in applications requiring low internal leakage.

Products

Specifications of ISV10-20 Poppet 2-Way N.C. Solenoid Valve

Operating Pressure207 bar (3000 psi)
Proof Pressure350 bar (5100 psi)
FlowSee Performance Chart
Internal Leakage0.15 ml/min. (3 drops/minute) max. at 207 bar (3000 psi)
Temperature-40 to 100°C
Coil Duty RatingContinuous from 85% to 115% of nominal voltage
Response TimeFirst indication of change of state with 100% voltage supplied at
80% of nominal flow rating: Energized: 40 msec.; De-energized: 32 msec.
Initial Coil Current Draw at 20°CInitial Coil Current Draw at 20°C
Minimum Pull-in VoltageFirst indication of change of state with 100% voltage supplied at
80% of nominal flow rating:Energized: 40 msec; De-energized: 32 msec.
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
InstallationNo restrictions
CavityIVC10-2; See page 300


Materials

CartridgeWeight: 0.16 kg. (0.35 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.
Standard CoilWeight: 0.27 kg. (0.60 lbs.); Unitized thermoplastic encapsulated,
Class H high temperature magnetwire.
E-CoilWeight: 0.41 kg. (0.90 lbs.); Perfect wound,fully encapsulated with rugged
external metal shell; Rated up to IP69K with integral connectors.


Features of ISV10-20 Poppet 2-Way N.C. Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened seat for long life and low leakage.
3. Optional coil voltages and terminations.
4. Efficient wet-armature construction.
5. Cartridges are voltage interchangeable.
6. Manual override option.
7. Optional waterproof E-Coils rated up to IP69K.
8. Unitized, molded coil design.
9. Industry common cavity.

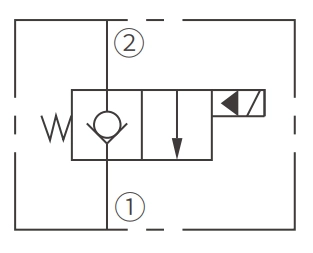

Operation Symbol of ISV10-20 Poppet 2-Way N.C. Solenoid Valve

Operation Symbol of ISV10-20 Poppet 2-Way N.C. Solenoid Valve

When de-energized, the ISV10-20 acts as a check valve, allowing flow from ① to ②, while blocking flow from ② to ①. When energized, the cartridge's poppet lifts to open the ② to ① flow path. In this mode, flow from ① to ② is severely restricted.


Operation of Manual Override Option


To override, push button in, twist counterclockwise 180°, and release. In this position, the valve will remain open. To return to normal operation, push button in, twist clockwise 180°, and release. Override will be detented in this position.

Performance/Dimension/Sectional Drawing of ISV10-20 Poppet 2-Way N.C. Solenoid Valve

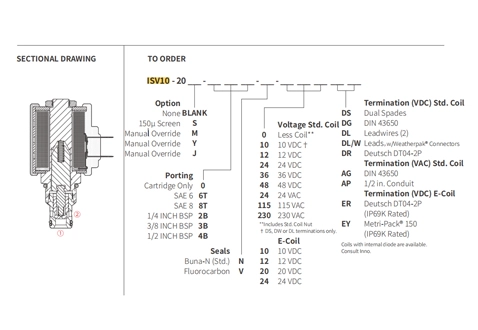

Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV10-20 Poppet 2-Way N.C. Solenoid Valve

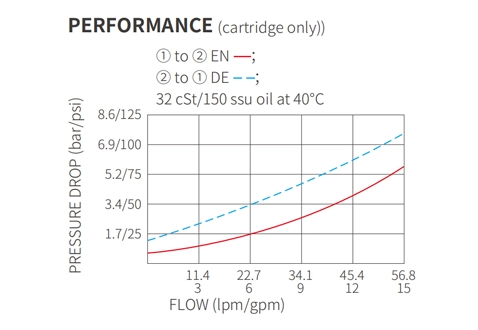

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ISV10-20 Poppet 2-Way N.C. Solenoid Valve

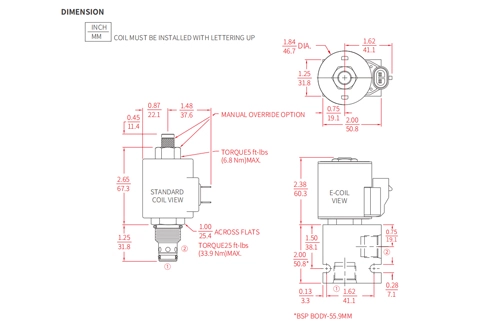

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV10-20 Poppet 2-Way N.C. Solenoid Valve
