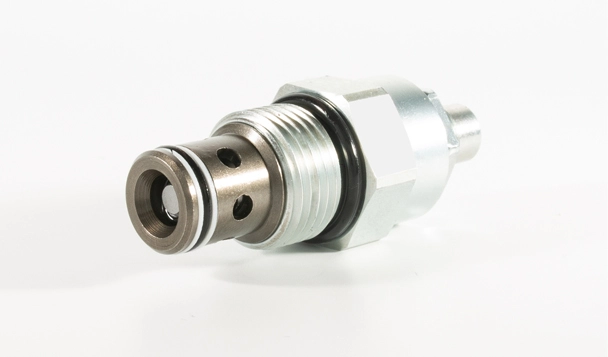

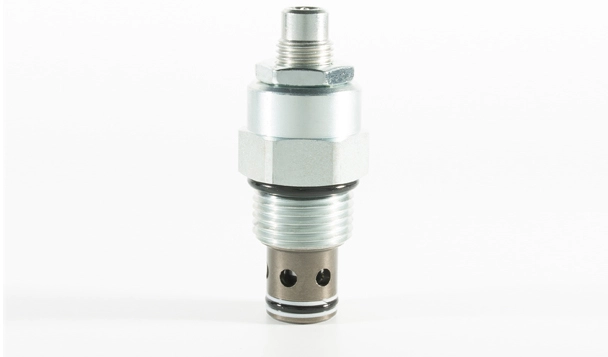

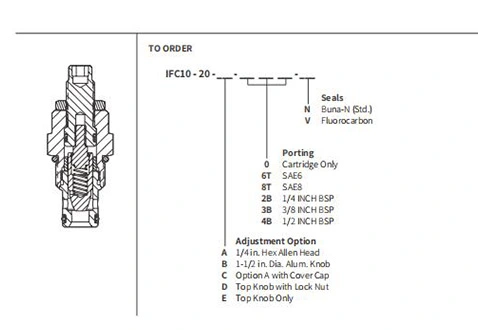

IFC10-20 Restrictor Check Valve

This valve ensures precise flow control while preventing backflow in hydraulic systems. The check valve feature allows for unidirectional flow, while the restrictor function regulates the flow rate according to specific requirements. The IFC10-20 restrictor check valve is particularly useful in applications where flow control and prevention of reverse flow are critical, such as hydraulic actuators, cylinders, and braking systems.

Products

Specifications of IFC10-20 Restrictor Check Valve

Operating Pressure240 bar (3500 psi)
Flow45 lpm (12 gpm) nominal at 7 bar (100 psi) at full open 3 turns
Internal Leakage0.50 ml/min. (10 drop/minute) max. at shut-off
Adjustment Torque Required0.34 Nm (3 inch-pounds) at 7 bar (100 psi);
4.50 Nm (40 inch-pounds) at 207 bar (3000 psi)
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC10-2; See page 300


Material

CartridgeWeight: 0.17 kg. (0.37 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings; Anodized aluminum knobs.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.


Features of IFC10-20 Restrictor Check Valve

1. Adjustments cannot be backed out of the valve.
2. Desired setting may be locked down.
3. Hardened parts for long life.
4. Industry common cavity.
5. Aluminum knob option.
6. Positive shut-off.
7. Linear adjustment.

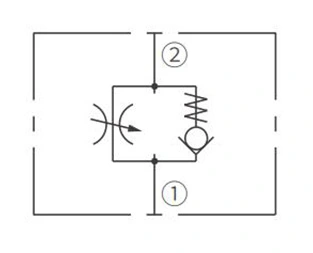

Operation Symbol of IFC10-20 Restrictor Check Valve

Operation Symbol of IFC10-20 Restrictor Check Valve

The IFC10-20 increases its orifice value from fully closed to fully open with counterclockwise adjustment rotation.

Performance/Dimension/Sectional Drawing of IFC10-20 Restrictor Check Valve

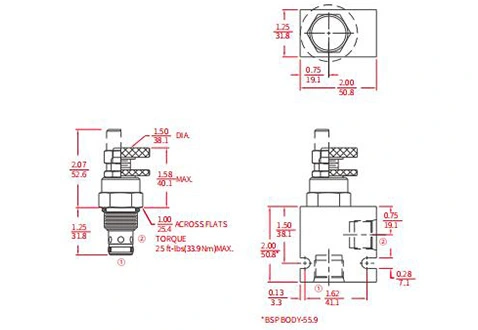

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IFC10-20 Restrictor Check Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of IFC10-20 Restrictor Check Valve

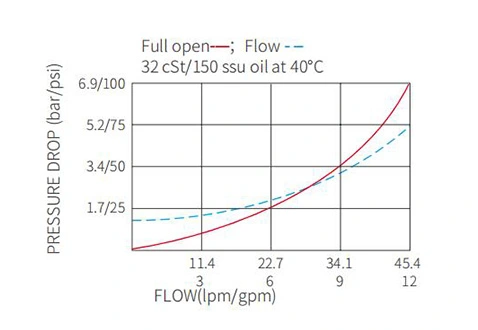

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IFC10-20 Restrictor Check Valve
