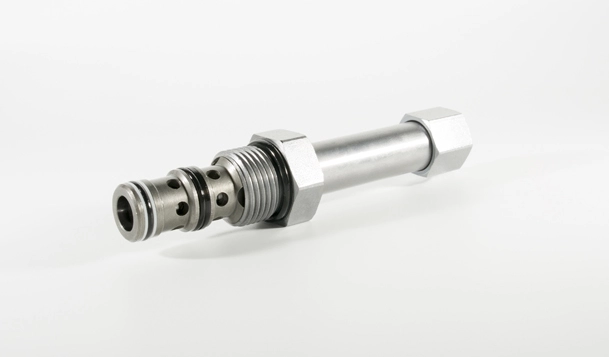

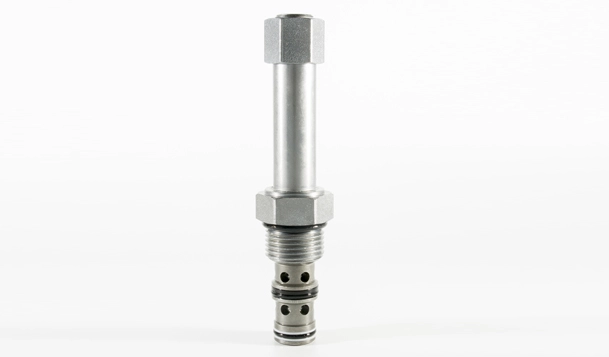

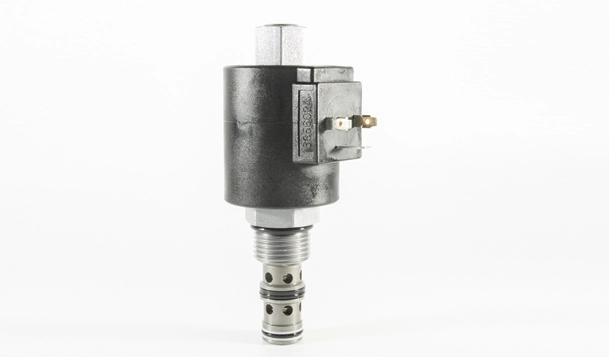

ITS10-36 Reducing/Relieving Valve

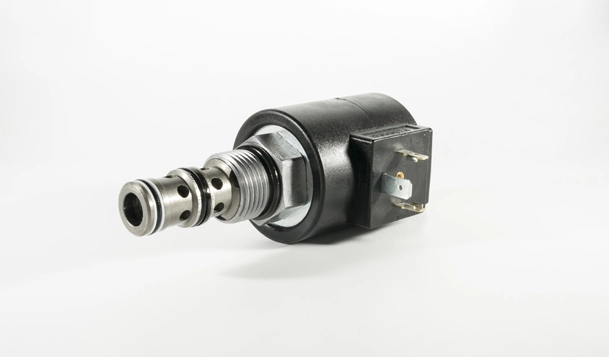

A screw-in, cartridge-style, pilot-operated, spool-type reducing/relieving valve, which can be infifinitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. This valve is intended for use as a pressure limiting device in demanding applications.

Products

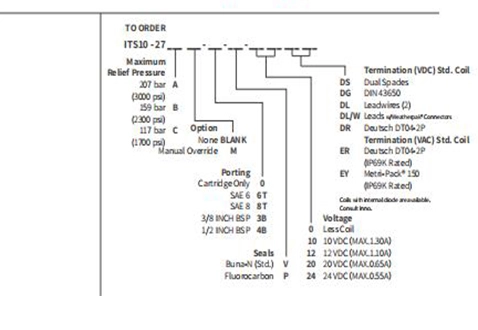

Specifications of ITS10-36 Reducing/Relieving Valve

Operating Pressure240 bar (3500 psi)
Maximum Control Current1.10 A for 12 VDC coil; 0.55 A for 24 VDC coil
Relief Pressure Range from Zero to Maximum Control Current

A: 6.9 to 207 bar (100 to 3000 psi);

B: 6.9 to 159 bar (100 to 2300 psi);

C: 6.9 to 117 bar (100 to 1700 psi)
Rated FlowCoil de-energized, Cartridge only, DP=22.8 bar (330 psi), Rated flow
from ① to ③ : 56.8 lpm (15 gpm)
Maximum Pilot pressure0.76 lpm (0.2 gpm)
Temperature-40 to 120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of
7.4 to 420 cSt (50 to 2000 sus)
Installation RecommendationWhen possible, the valve should be mounted
below the reservoir oil level. This will maintain oil in the armature
preventing trapped air instability. If this is not feasible, mount the valve
horizontally for best results.
CavityIVC10-3; See page 275


Materials

CartridgeWeight: 0.25 kg. (0.55 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces;
Seal:O-rings and back-up rings. Polyurethane seals recommended for
pressures over 240 bar (3500 psi).
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi); Ductile iron and steel
bodies available; dimensions may differ; Consult Inno.
Standard CoilWeight: 0.27 kg. (0.60 lbs.); Unitized thermoplastic encapsulated,
Class H high temperature magnetwire.
E-CoiWeight: 0.41 kg. (0.90 lbs.); Perfect wound, fully encapsulated with rugged
external metal shell; Rated up to IP69K with integral connectors.


Features of ITS10-36 Reducing/Relieving Valve

1. Manual override option.
2. Air Release option.
3. 12 and 24 volt coils standard.
4. Industry common cavity.
5. Optional waterproof E-Coils rated up to IP69K.


Operation Symbol of ITS10-36 Reducing/Relieving Valve

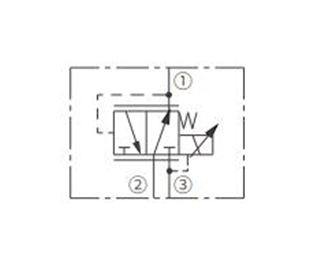

Operation Symbol of ITS10-36 Reducing/Relieving Valve

The ITS10-36 allows flow from ① to ② until sufficient pressure is present at ①  to open the pilot section by offsetting the electrically induced solenoid force.  Increasing electric current will increase the control (reduced) pressure at ①. With  no current applied to the solenoid, the valve will relieve pressure at ① at approximately 100 psi, regardless of pressure at ②.


The ITS10-36 has an optional manual override feature. This allows the valve to  be set when the electric supply is lost. The manual setting is added to the electric setting, so when using the manual override feature to establish a minimum setting, care is required to prevent the system from becoming over-pressurized.

Performance/Dimension/Sectional Drawing of ITS10-36 Reducing/Relieving Valve

Sectional Drawing
Performance/Dimension/Sectional Drawing of ITS10-36 Reducing/Relieving Valve

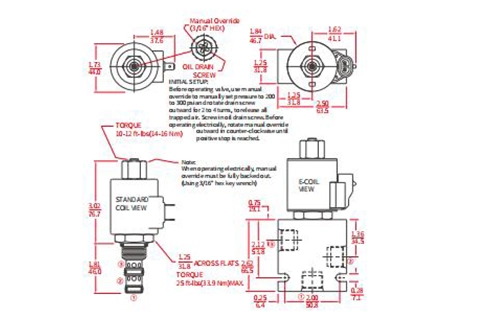

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ITS10-36 Reducing/Relieving Valve

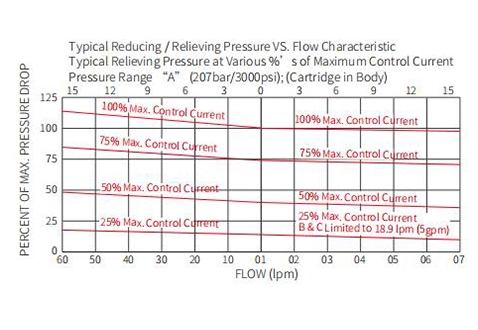

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ITS10-36 Reducing/Relieving Valve

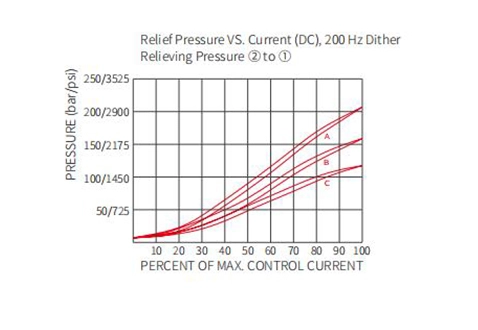

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ITS10-36 Reducing/Relieving Valve

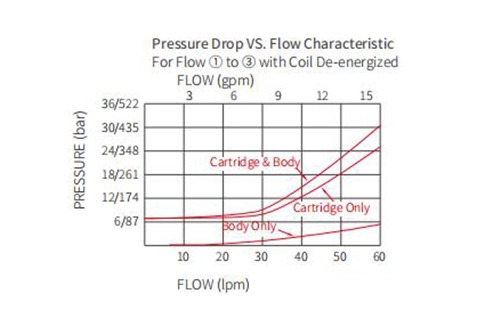

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ITS10-36 Reducing/Relieving Valve
