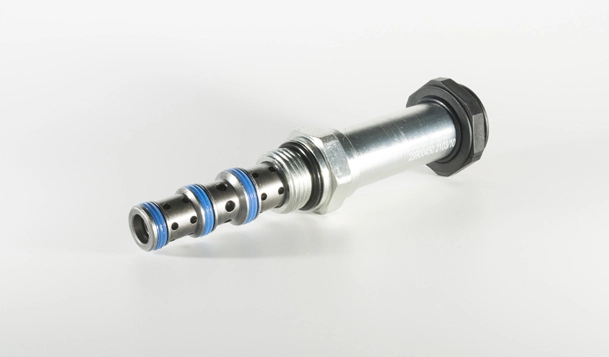

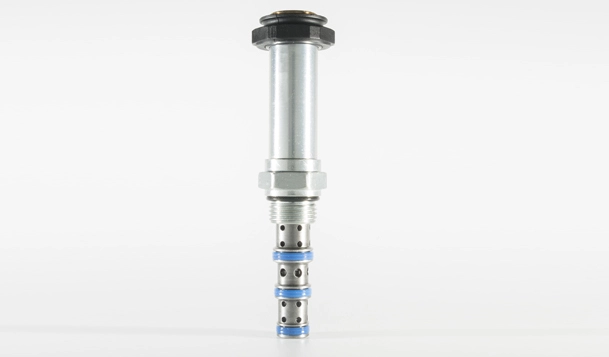

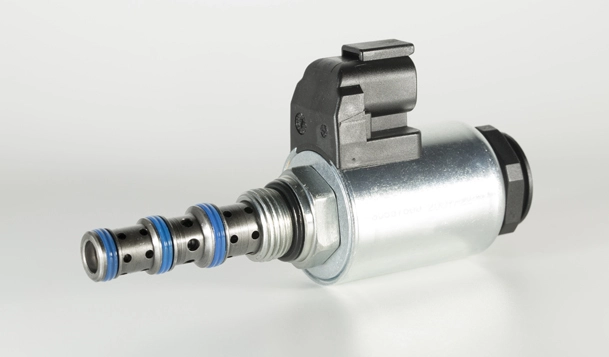

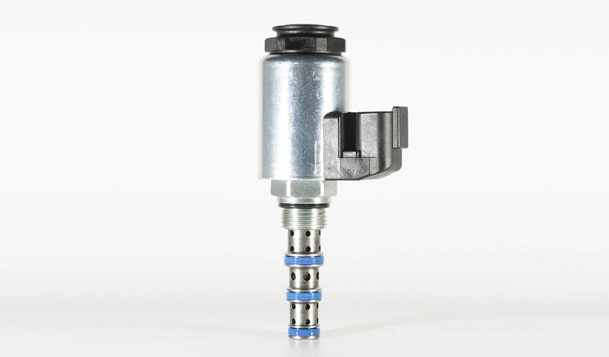

The ISV08-B40 Spool, 4-Way, 2-Position valve is a versatile hydraulic valve that provides precise control over fluid flow in industrial applications. With its 4-way configuration and 2-position operation, it allows for efficient control of fluid direction. Its durable construction and reliable performance make it suitable for various hydraulic systems requiring accurate flow control.
| Product Model | ISV08-B40 SPOOL, 4-WAY, 2-POSITION |
| Operating Pressure | 350 bar (5100 psi) |
| Flow | 30L/min(8 gpm) |
| Internal Leakage | 82 ml/min. max. at 210 bar (5075 psi) |
| Temperature | -40°℃～100°C |
| Response Time | Pull-In: 150 msec.; Drop-Out: 150 msec |
| Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions |
| Cavity | IVC08-4, See page 299 |
Material
| Cartridge | 0.23 kg. (0.51 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces. |
| Seal | D type seal rings. |
| 1. Continuous-duty rated coil. |
| 2. Hardened seat for long life and low leakage. |
| 3. Optional coil voltages and terminations. |
| 4. All ports may be fully pressurized. |
| 5. Heavy-duty waterproof E-Coils rated up to IP69K |

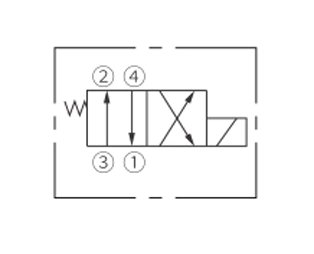

When de-energized, the ISV08-40R flow paths are ② to ① and ③ to ④.When energized, the cartridge’s spool shifts to open ③ to ② and ④ to①.
