ICKCB Pilot-to-Open Check Valve

The ICKCB Check Valve Pilot-to-Open is a versatile valve that permits flow in one direction and blocks backflow. It incorporates a pilot mechanism that initiates valve opening in specific conditions, delivering dependable and effective performance across diverse industrial applications.

Products

Specifications of ICKCB Check Valve Pilot-to-Open

Product ModelICKCB CHECK VALVE PILOT-TO-OPEN
Operating Pressure350 bar(5100 psi)
FlowSee Performance Chart
Internal Leakage① to② : 0.10 ml/min. max (2 drops/minute) at 350 bar (5100 psi)
Pilot Ratio3:1
Check Spring Bias2 bar(29 psi),Standard With Sealed Piston Option
With Sealed Piston Option-40°℃~120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation:No restrictions
CavityIT-163A,See page 309


Material

CartridgeWeight: 0.13kg. (0.29 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealO-rings and back-up rings.


Features of ICKCB Check Valve Pilot-to-Open

1. Hardened seat for long life and low leakage.
2. Optional sealed piston.
3. Optional spring ranges.
4. Compact size.

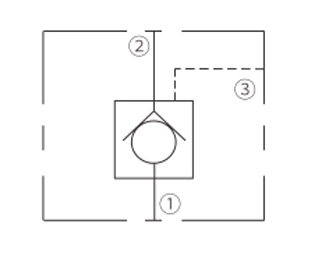

Operation Symbol of ICKCB Check Valve Pilot-to-Open

Operation Symbol of ICKCB Check Valve Pilot-to-Open

The ICKCB /ICKCD allows flow from ② to ①, while normally blocking oil flow in the opposite direction. The flow will be allowed from ① to ② when sufficient pressure is applied at ③.The check is spring-biased to assure holding in static or no-load conditions.

Performance/Dimension/Sectional Drawing of ICKCB Check Valve Pilot-to-Open

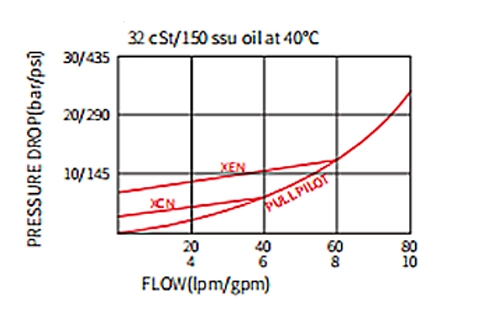

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICKCB Check Valve Pilot-to-Open

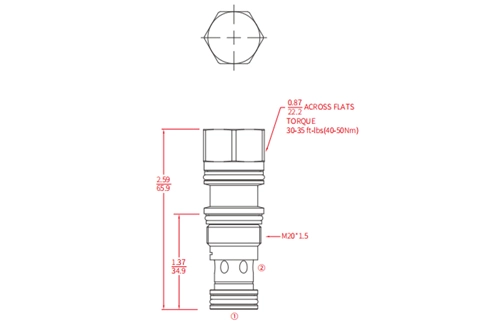

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICKCB Check Valve Pilot-to-Open

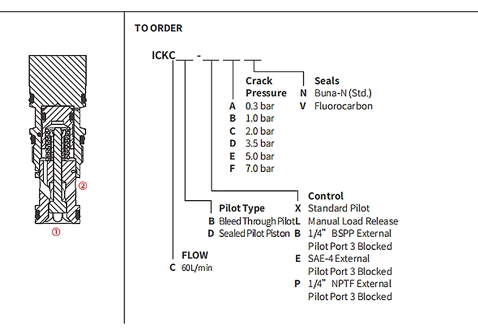

Sectional Drawing
Performance/Dimension/Sectional Drawing of ICKCB Check Valve Pilot-to-Open
