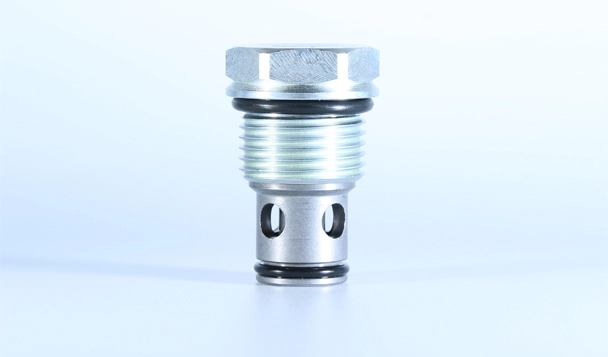

ICV08-20 Poppet Valve, Check Valve (High Pressure)

The ICV08-20 is a high-pressure Poppet Valve, Check Valve designed for demanding fluid control applications. With its durable construction and compact size, it provides reliable one-way flow and prevents backflow under high-pressure conditions. Ideal for industries requiring precise fluid control in challenging environments.

Products

Specifications of ICV08-20 Poppet Valve, Check Valve (High Pressure)

Product ModelICV08-20 POPPET VALVE, CHECK VALVE (HIGH PRESSURE)
Operating Pressure420 bar (6100 psi)
FlowSee Performance Chart
Internal Leakage0.10 ml/min. (2 drops/minute) max. at 420 bar (6100 psi)
Crack Pressure DefinedGauge bar (psi) evident at ① at 16.4 ml/min. (1 cu.in./minute) attained
Standard Bias Springs at Crack0.5 bar(7.3 psi);1.0 bar(14.5 psi);2.5 bar (36.3 psi);3.0 bar(43.5psi);5.0 bar(72.5 psi);8.0 bar(116 psi);9.0 bar (130.5 psi) ;15.0 bar (217.5 psi)
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC08-2, See page 297


Material

CartridgeWeight: 0.06 kg. (0.13 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized highstrength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of ICV08-20 Poppet Valve, Check Valve (High Pressure)

1. Hardened seat for long life and low leakage.
2. Optional bias springs for back-pressure application flexibility.
3. Fully guided check assembly.
4. Miniature size.
5. Fast closing and seating.

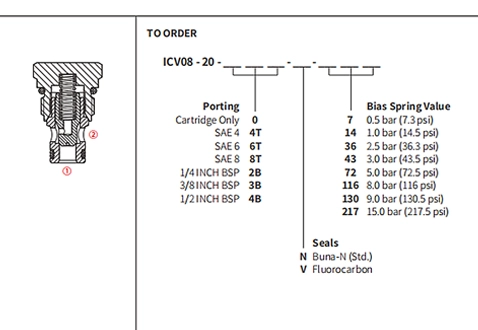

Operation Symbol of ICV08-20 Poppet Valve, Check Valve (High Pressure)

Operation Symbol of ICV08-20 Poppet Valve, Check Valve (High Pressure)

The ICV08-20 allows flow passage from ① to ②, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at ① to open to ②.

Performance/Dimension/Sectional Drawing of ICV08-20 Poppet Valve, Check Valve (High Pressure)

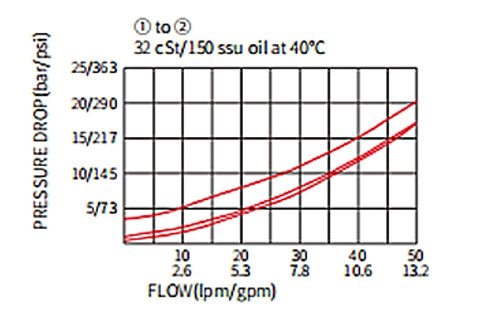

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV08-20 Poppet Valve, Check Valve (High Pressure)

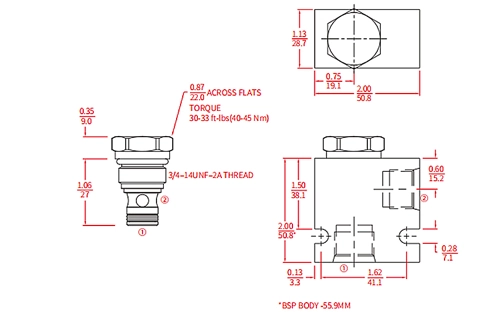

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV08-20 Poppet Valve, Check Valve (High Pressure)
Sectional Drawing
Performance/Dimension/Sectional Drawing of ICV08-20 Poppet Valve, Check Valve (High Pressure)
