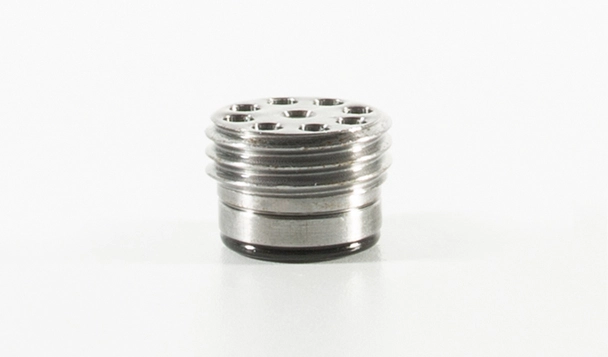

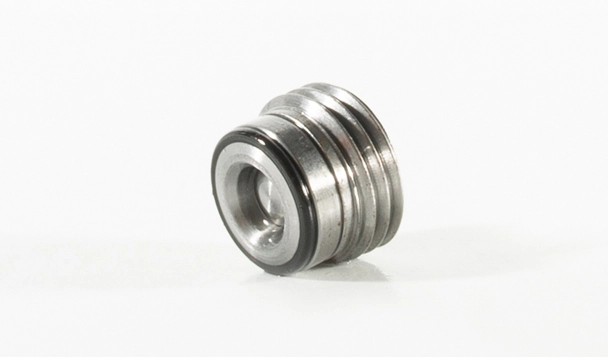

ICV2000-G38 Screw-In Check Valve

This valve is engineered to provide robust and dependable backflow prevention, ensuring the integrity and efficiency of hydraulic systems. Its screw-in design allows for easy installation and provides a secure and leak-free connection. ICV2000-G38 is designed to handle higher flow rates and is capable of managing larger volumes of fluid, making it suitable for applications that demand increased capacity. With its durable construction and reliable performance, this valve is an essential component in hydraulic systems where backflow prevention is critical for optimal operation and system protection.

Products

Specifications of ICV2000-G38 Screw-In Check Valve

Operating Pressure350 bar (5100 psi)
FlowSee Performance Chart
Internal Leakage0.10 ml/minute (2 drops/minute) max.at 350 bar (5100 psi)
Crack Pressure DefinedGauge bar (psi) evident at① at 16.4 ml/min. (1 cu.
in./minute) attained
Standard Bias Springs at Crack0.5 bar (7.3 psi)
Temperature-40℃to 120℃
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 sus)
InstallationNo restrictions
CavityAs below figure


Features of ICV2000-G38 Screw-In Check Valve

1. Hardened seat for long life and low leakage.
2. Miniature size.
3. Fast closing and seating

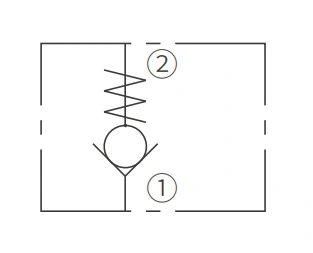

Operation Symbol of ICV2000-G38 Screw-In Check Valve

Operation Symbol of ICV2000-G38 Screw-In Check Valve

The ICV2000-G38 allows flow from ① to ②, while normally blocking oil flow in  the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at ① to open to ②.

Performance/Dimension/Sectional Drawing of ICV2000-G38 Screw-In Check Valve

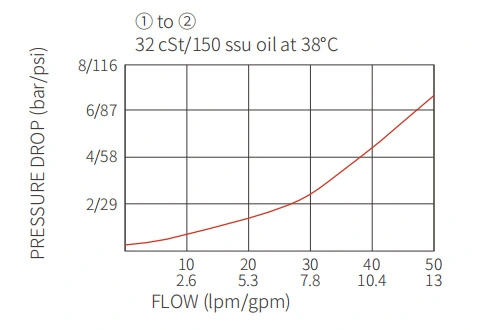

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV2000-G38 Screw-In Check Valve

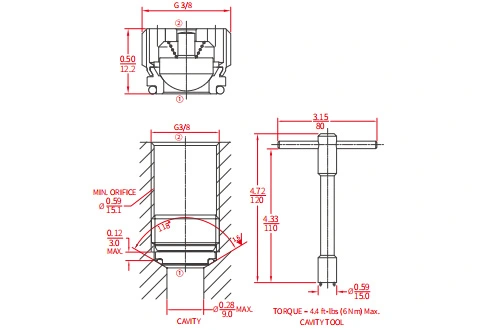

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV2000-G38 Screw-In Check Valve
