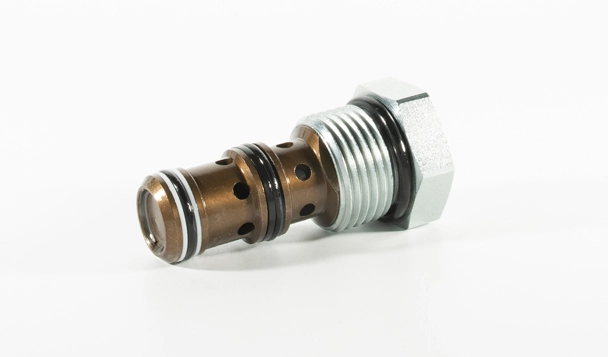

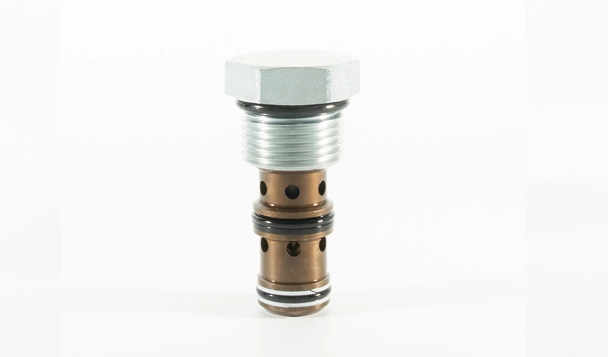

IPC10-32 Pilot-To-Open Check Valves

IPC10-32 pilot-to-open check valves, a robust and reliable series of check valves built to withstand the harshest industrial conditions, providing superior fluid control and safeguarding against backflow, making them an indispensable component for maintaining seamless operations in demanding industrial environments.


Products

Specifications of IPC10-32 Pilot-To-Open Check Valves

Operating Pressure240 bar (3500 psi)
FlowSee Performance Chart
Internal Leakage 240 bar (3500 psi)
③ to ② : 0.25 ml/min. max (5 drops/minute)
② to ① without sealed piston: 115 ml/min. max (7 cu. in./minute)
Pilot Ratio2 : 1
Check Spring Bias2.07 bar (30 psi)
With Sealed Piston Option6.2 bar (90 psi) minimum
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC10-3; See page 300


Material

CartridgeWeight: 0.09kg. (0.20 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal ring.
Standard Ported BodyWeight: 0.36 kg. (0.80 lbs.); Anodized highstrength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.


Features of IPC10-32 Pilot-To-Open Check Valves

1. Hardened seat for long life and low leakage.
2. Optional sealed piston.
3. Industry common cavity.

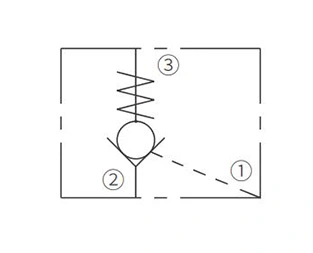

Operation Symbol of IPC10-32 Pilot-To-Open Check Valves

Operation Symbol of IPC10-32 Pilot-To-Open Check Valves

The IPC10-32 allows flow from ②to ③, while normally blocking oil flow in the  opposite direction. The flow will be allowed from ③ to ② when sufficient pressure  is applied at ①. The cartridge has a 2:1 pilot ratio, meaning that at least one-half of the load pressure held at ③ is required at ① to open the valve. The check is spring-biased to assure holding in static or no-load conditions.

Performance/Dimension/Sectional Drawing of IPC10-32 Pilot-To-Open Check Valves

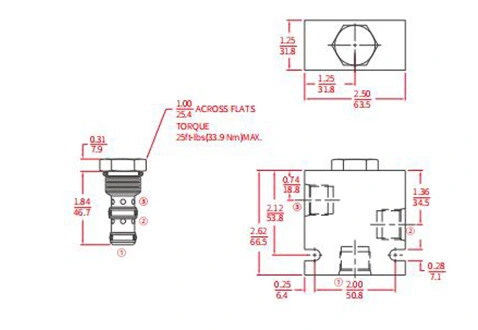

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IPC10-32 Pilot-To-Open Check Valves

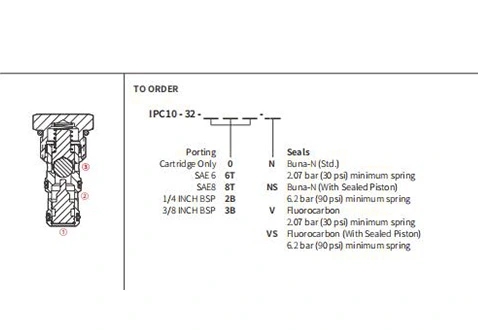

Sectional Drawing
Performance/Dimension/Sectional Drawing of IPC10-32 Pilot-To-Open Check Valves

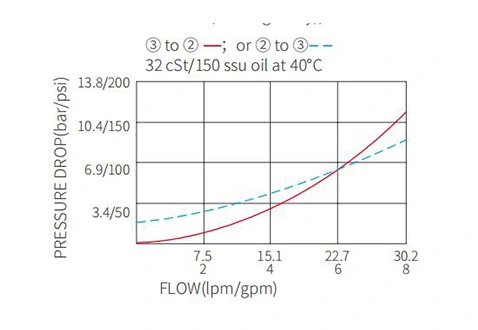

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IPC10-32 Pilot-To-Open Check Valves
